FGSW-2612PVS | Web Smart 24 Port {12-Port POE}10/100 Ethernet Switch + 2-port 1000Base-T/Mini-Gbic 2 Year Warranty

For catering to the need of remote management and more advanced functions of the in-line power, PLANET releases two new versions of Web Smart PoE (Power over Ethernet) Switches, the FGSW-2620PVSv2 and FGSW-2612PVSv2.

The new PLANET FGSW-2620PVS and FGSW-2612PVS provides 24 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP combo ports, the two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/50/70/120 kilometers (Single-mode fiber).

Both Web Smart PoE Switches are equipped with non-blocking 8.8Gbps backplane greatly simplifies the tasks of upgrading your LAN to cater for increased bandwidth demands. The PoE in-line power follows the standard IEEE 802.3af for making the both FGSW-2620PVS and FGSW-2612PVS able to power on 24/12 PoE devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire.

For efficient management, both Web Smart PoE Switches are equipped with web interface. The FGSW-2620PVS and FGSW-2612PVS can be programmed on basic switch management functions, such as port speed configuration, Port Trunking, Port-based VLAN, Port Mirroring, QoS, bandwidth control, Access Control list and Misc Configuration, PoE port configuration.

Both Web Smart PoE Switches provide IEEE 802.1Q VLAN and Port-based VLAN (included overlapping). The VLAN groups allow the 2 Web Smart PoE Switches for being maximally up to 26 for VLAN groups. Via supporting port trucking, the FGSW-2620PVS and FGSW-2612PVS allow the operation of high-speed trunk combining multiple ports and provide seven groups of up to 8-ports for trucking. And it supports fail-over as well.

With its Auto-Negotiation capability, all the RJ-45/STP ports of FGSW-2620PVS and FGSW-2612PVS can be configured to speed on 10/20Mbps or 100/200Mbps automatically. In addition, the product is equipped with the auto-detected MDI/MDI-X for plugging easily.

Application

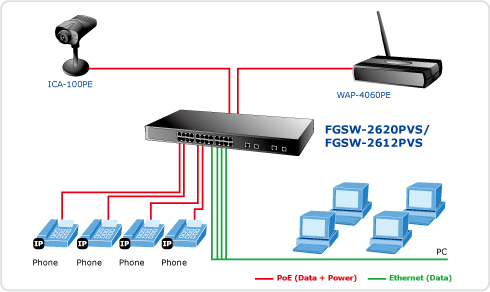

Department/ Workgroup PoE Switch
Providing up to 12 PoE, in-line power interface, the switch can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 12 cameras / AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.
Without the power-socket limitation, the switch makes the installation of cameras or WLAN AP more easily and efficiently.

Key Features

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
• 24-Port 10/100Mbps Fast Ethernet Switch
    2
• 2-Port Gigabit TP/SFP combo ports
• 12-Port PoE output
• Each Switching port supports auto-negotiation-10/20, 100/200Mbps supported
• Supports IEEE 802.3af 15.4 watts power output on each port
• Auto-MDI/MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame flow control (full- duplex)
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 8K MAC address table, automatic source address learning and ageing
• 512K Bytes packet buffers
• Web interface for Switch basic management and setup
• Supports up to 26 IEEE 802.1Q or Port-based VLAN groups
• Supports up to 7 Trunk groups, each trunk for up to maximum 8 port with 800Mbps bandwidth
• Port mirroring allows to monitor the traffic across any port in real time
• Supports QoS and bandwidth to control each port
• Supports Access Control List function
• 19-inch rack mount sizeInternal full-range power supply suitable for worldwide use
• EMI standards comply with FCC, CE class A
